Model

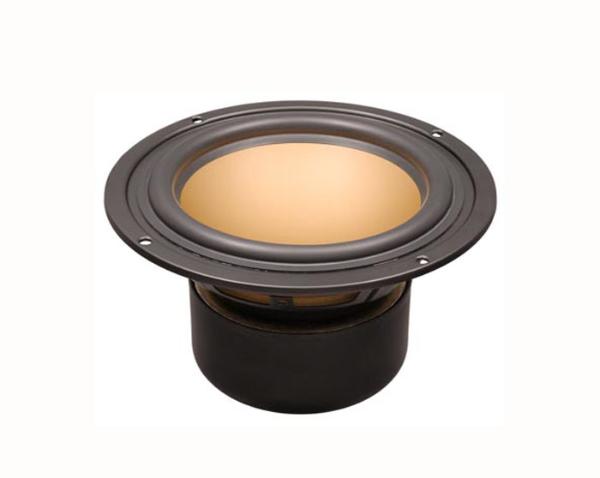

HiVi M6N
Rating
DIAM
6"
FS(Hz)
46
VAS(l)
21.9
QTS
0.39
PWR(W)
90
SPL(dB)
88.9
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
46
Vas(l)
21.9
Qts
0.39
Qms
4.69
Qes
0.42
Bl(Tm)
7.8
Mms(gr)
14
Cms(mm/N)
0.878
Rms(kg/s)
0.84
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
13262
Vd(l)
0.057
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
90
RMS Power(W.)
45
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
88.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
