Model

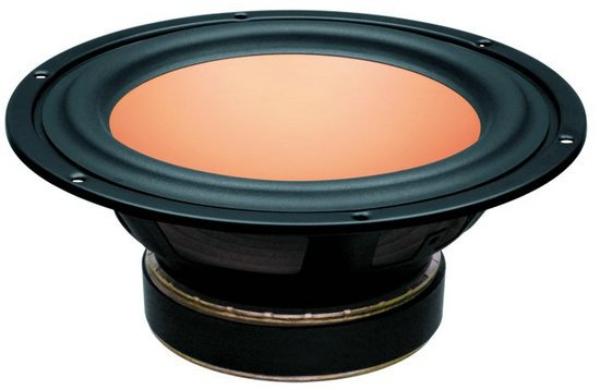

HiVi M8N
Rating
DIAM
8"
FS(Hz)
29
VAS(l)
53.5
QTS
0.45
PWR(W)
160
SPL(dB)
86
IMP(Ohm)
8x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
53.5
Qts
0.45
Qms
5.02
Qes
0.5
Bl(Tm)
9.6
Mms(gr)
37
Cms(mm/N)
0.822
Rms(kg/s)
1.32
Le(mH)
0
Re(Ohm)
6.5
Sd(sq.mm)
21400
Vd(l)
0.124
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
178
Mounting Depth (mm)
92
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
