Model

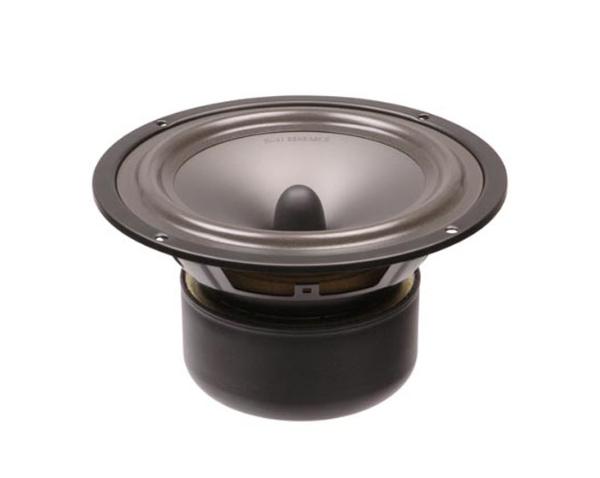

HiVi S6N
Rating
DIAM
6"
FS(Hz)
45
VAS(l)
23.4
QTS
0.35
PWR(W)
90
SPL(dB)
89.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
45
Vas(l)
23.4
Qts
0.35
Qms
3.41
Qes
0.39
Bl(Tm)
7.6
Mms(gr)
13
Cms(mm/N)
0.941
Rms(kg/s)
1.103
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
13241
Vd(l)
0.057
X-max(mm)
4
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
90
RMS Power(W.)
45
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.53
Sensitivity(dB) 1-W
89.2
Sensitivity(dB) 2.8-V
90.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
180
Cutout Diameter (mm)
142
Mounting Depth (mm)
98
Magnet Diameter (mm)
107
Optimum Enclosures
Enclosures
Vented, BP6
