Model

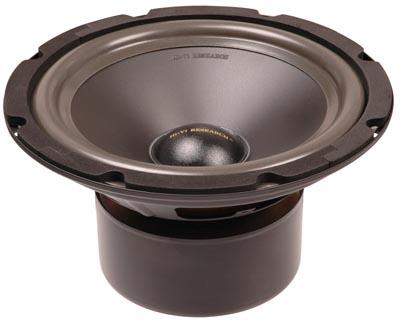

HiVi SS8IIR
Rating
DIAM
8"
FS(Hz)
33
VAS(l)
59.6
QTS
0.28
PWR(W)
160
SPL(dB)
90.5
IMP(Ohm)
5x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
33
Vas(l)
59.6
Qts
0.28
Qms
5.2
Qes
0.29
Bl(Tm)
9.2
Mms(gr)
28
Cms(mm/N)
0.809
Rms(kg/s)
1.12
Le(mH)
0
Re(Ohm)
4.2
Sd(sq.mm)
22700
Vd(l)
0.109
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
160
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
5
Reference efficiency η0(%)
0.71
Sensitivity(dB) 1-W
90.5
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
185
Cutout Diameter (mm)
210
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
