Model

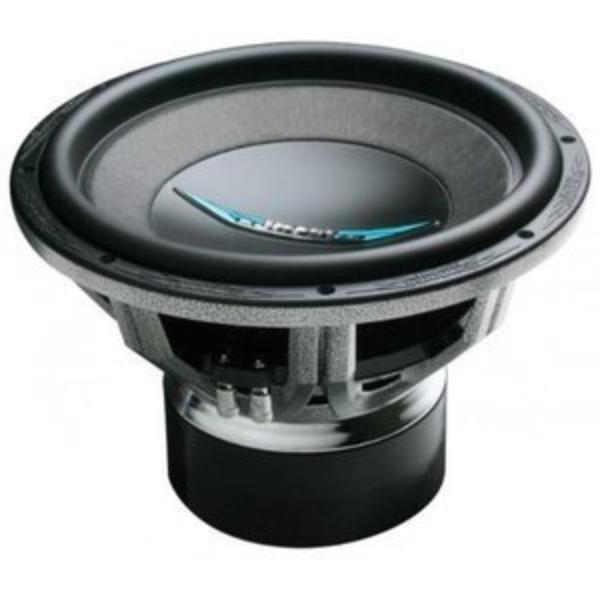

Image Dynamics IDMAX10 V3 D4
Rating
DIAM
10"
FS(Hz)
20.4
VAS(l)
87
QTS
0.33
PWR(W)
2000
SPL(dB)
84.6
IMP(Ohm)
4x2
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
20.4
Vas(l)
87
Qts
0.328
Qms
1.95
Qes
0.394
Bl(Tm)
8.5
Mms(gr)
150
Cms(mm/N)
0.407
Rms(kg/s)
9.827
Le(mH)
0
Re(Ohm)
1.5
Sd(sq.mm)
38800
Vd(l)
0.954
X-max(mm)
25
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.832
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
