Model

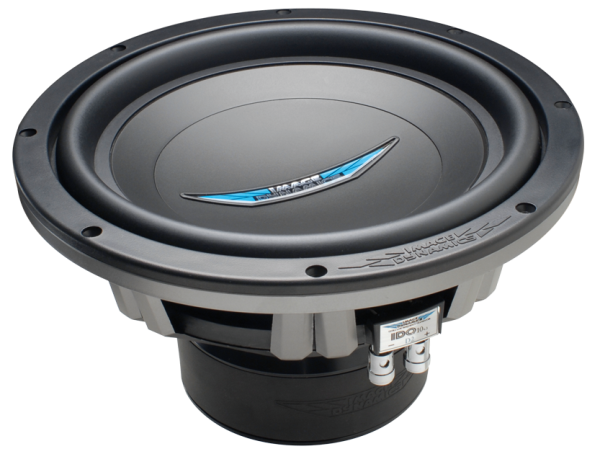

Image Dynamics IDQ10 D2 V.4
Rating
DIAM
10"
FS(Hz)
31.8
VAS(l)
44.7
QTS
0.62
PWR(W)
1000
SPL(dB)
84.4
IMP(Ohm)
2x2
avb
PROD
Thiele-Small Parameters
Fs(Hz)
31.8
Vas(l)
44.7
Qts
0.62
Qms
2.9
Qes
0.79
Bl(Tm)
7.4
Mms(gr)
118
Cms(mm/N)
0.212
Rms(kg/s)
8.15
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
38538
Vd(l)
1.079
X-max(mm)
28
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
500
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.982
Total Diameter (mm)
0
Cutout Diameter (mm)
243
Mounting Depth (mm)
148
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
