Model

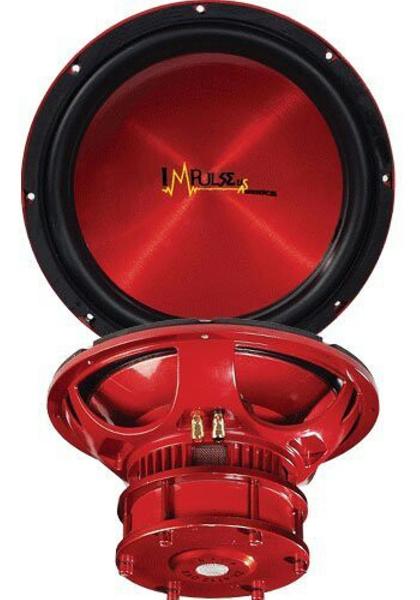

Impulse RW-810
Rating
DIAM
10"
FS(Hz)
40
VAS(l)
23
QTS
0.49
PWR(W)
800
SPL(dB)
86.1
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
40
Vas(l)
23
Qts
0.49
Qms
5
Qes
0.55
Bl(Tm)
12.8
Mms(gr)
115
Cms(mm/N)
0.138
Rms(kg/s)
5.78
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
34600
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
800
RMS Power(W.)
400
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
90.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
