Model

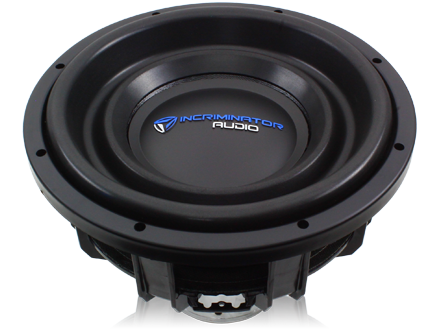

Incriminator Audio FLATLYNE 12D2(FL12D2)
Rating
DIAM
12"
FS(Hz)
28
VAS(l)
36.9
QTS
0.43
PWR(W)
1200
SPL(dB)
83.5
IMP(Ohm)
2x2
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
28
Vas(l)
36.9
Qts
0.43
Qms
3.88
Qes
0.55
Bl(Tm)
14.6
Mms(gr)
223
Cms(mm/N)
0.14
Rms(kg/s)
10.099
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
48000
Vd(l)
0.864
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
600
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.14
Sensitivity(dB) 1-W
83.5
Sensitivity(dB) 2.8-V
87.8
Mounting Information
Speaker Displacement (l)
3.681
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
