Model

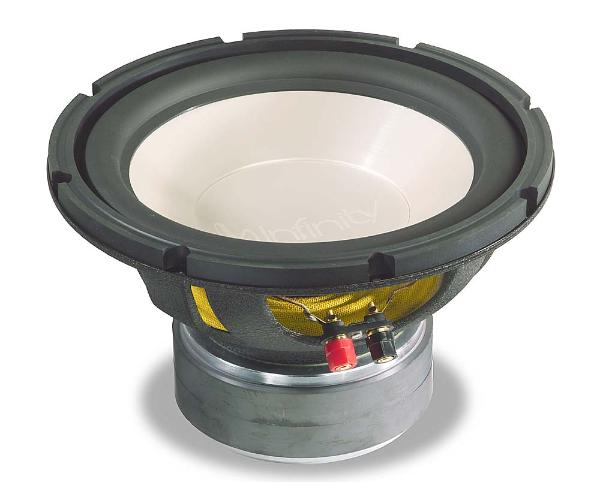

Infinity 1030W
Rating
DIAM
10"
FS(Hz)
29.6
VAS(l)
35.72
QTS
0.39
PWR(W)
1000
SPL(dB)
88
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29.6
Vas(l)
35.7
Qts
0.39
Qms
6.24
Qes
0.42
Bl(Tm)
15
Mms(gr)
143
Cms(mm/N)
0.202
Rms(kg/s)
4.266
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
35500
Vd(l)
0.44
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
88
Sensitivity(dB) 2.8-V
88.9
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
235
Mounting Depth (mm)
140
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
