Model

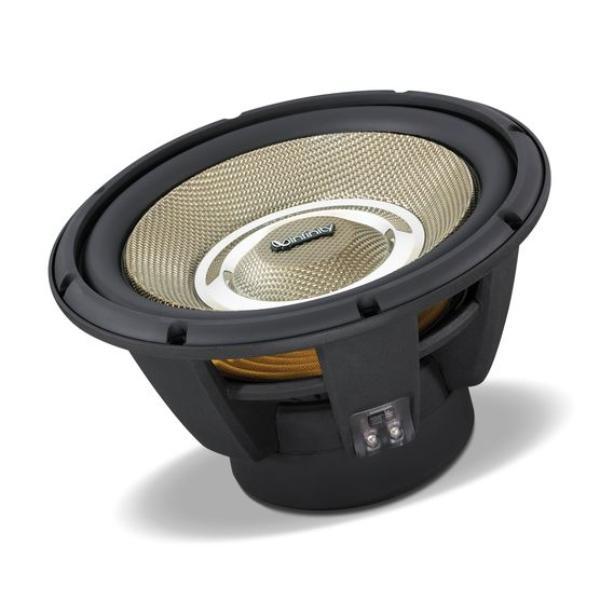

Infinity 120.9W
Rating
DIAM
12"
FS(Hz)
27.2
VAS(l)
54.43
QTS
0.46
PWR(W)
1200
SPL(dB)
91
IMP(Ohm)
2x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.2
Vas(l)
54.4
Qts
0.46
Qms
4.13
Qes
0.51
Bl(Tm)
12.5
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
18
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
380
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
91
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
283
Mounting Depth (mm)
160
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
