Model

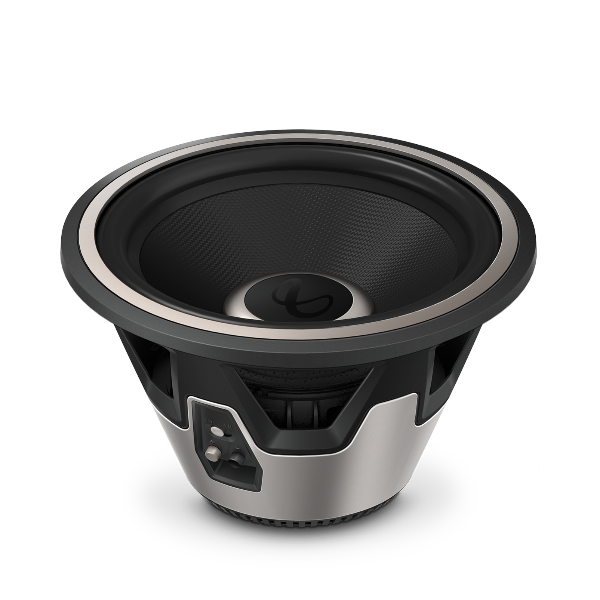

Infinity KAPPA 1000W
Rating
DIAM
10"
FS(Hz)
30.5
VAS(l)
27
QTS
0.37
PWR(W)
2000
SPL(dB)
84.6
IMP(Ohm)
2x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
30.5
Vas(l)
27
Qts
0.37
Qms
4
Qes
0.408
Bl(Tm)
12
Mms(gr)
156
Cms(mm/N)
0.175
Rms(kg/s)
7.459
Le(mH)
0
Re(Ohm)
2
Sd(sq.mm)
33000
Vd(l)
0.338
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
2000
RMS Power(W.)
1000
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
231
Mounting Depth (mm)
159
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
