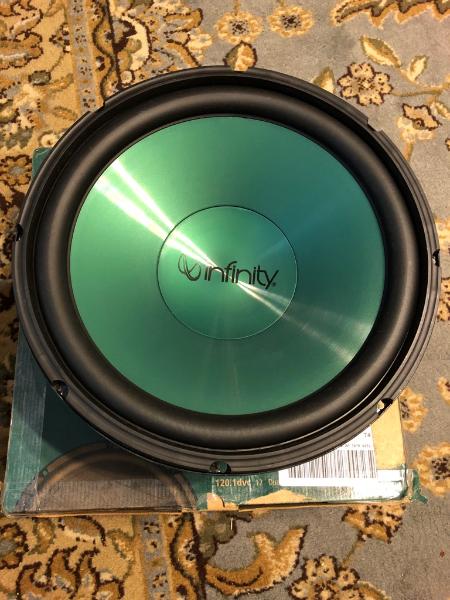

Infinity KAPPA 120.1DVC
Infinity KAPPA 120.1DVC
Model

Infinity KAPPA 120.1DVC

Rating
DIAM
12"
FS(Hz)
23.1
VAS(l)
155
QTS
0.43
PWR(W)
1000
SPL(dB)
88.5
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
23.1
Vas(l)
155
Qts
0.43
Qms
14.29
Qes
0.41
Bl(Tm)
8.6
Mms(gr)
114
Cms(mm/N)
0.418
Rms(kg/s)
1.154
Le(mH)
1.38
Re(Ohm)
2
Sd(sq.mm)
51100
Vd(l)
0.485
X-max(mm)
10
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.45
Sensitivity(dB) 1-W
88.5
Sensitivity(dB) 2.8-V
94.5

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
305
Cutout Diameter (mm)
274
Mounting Depth (mm)
148
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
