Model

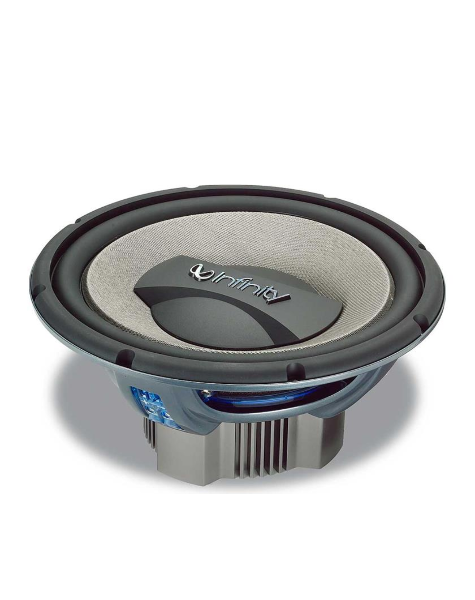

Infinity KAPPA 122.7W
Rating
DIAM
12"
FS(Hz)
20.6
VAS(l)
98.3
QTS
0.46
PWR(W)
1400
SPL(dB)
84.3
IMP(Ohm)
2x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
20.6
Vas(l)
98.3
Qts
0.456
Qms
7.3
Qes
0.49
Bl(Tm)
8.5
Mms(gr)
243
Cms(mm/N)
0.245
Rms(kg/s)
4.31
Le(mH)
0.76
Re(Ohm)
1
Sd(sq.mm)
53000
Vd(l)
0.636
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
350
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.17
Sensitivity(dB) 1-W
84.3
Sensitivity(dB) 2.8-V
93.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
316
Cutout Diameter (mm)
283
Mounting Depth (mm)
127
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
