Model

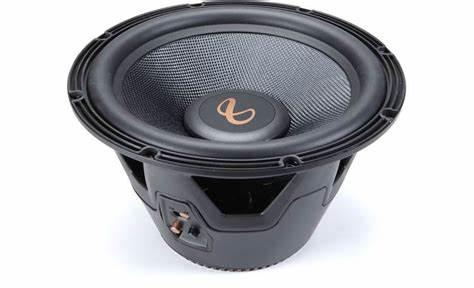

Infinity Kappa 123WDSSI 2Ohm
Rating
DIAM
12"
FS(Hz)
34.2
VAS(l)
58.6153
QTS
0.78
PWR(W)
1500
SPL(dB)
86
IMP(Ohm)
2x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
34.2
Vas(l)
58.6
Qts
0.778
Qms
6.134
Qes
0.891
Bl(Tm)
9.4
Mms(gr)
144
Cms(mm/N)
0.151
Rms(kg/s)
5.038
Le(mH)
1.403
Re(Ohm)
2.3
Sd(sq.mm)
33000
Vd(l)
0.337
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1500
RMS Power(W.)
500
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
91.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
328
Cutout Diameter (mm)
288
Mounting Depth (mm)
178
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
