Model

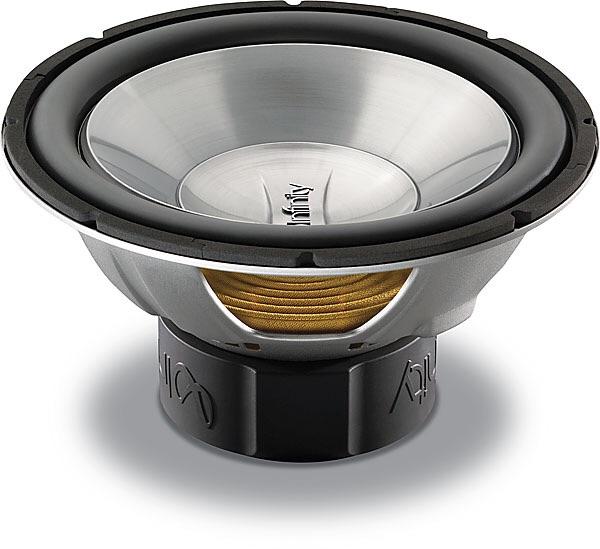

Infinity REFERENCE 1260W
Rating
DIAM
12"
FS(Hz)
23.5
VAS(l)
83
QTS
0.39
PWR(W)
1200
SPL(dB)
86
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
23.5
Vas(l)
83
Qts
0.39
Qms
6.99
Qes
0.41
Bl(Tm)
16.9
Mms(gr)
222
Cms(mm/N)
0.207
Rms(kg/s)
4.69
Le(mH)
2.89
Re(Ohm)
3.6
Sd(sq.mm)
53100
Vd(l)
0.69
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.25
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
89.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
282
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
