Model

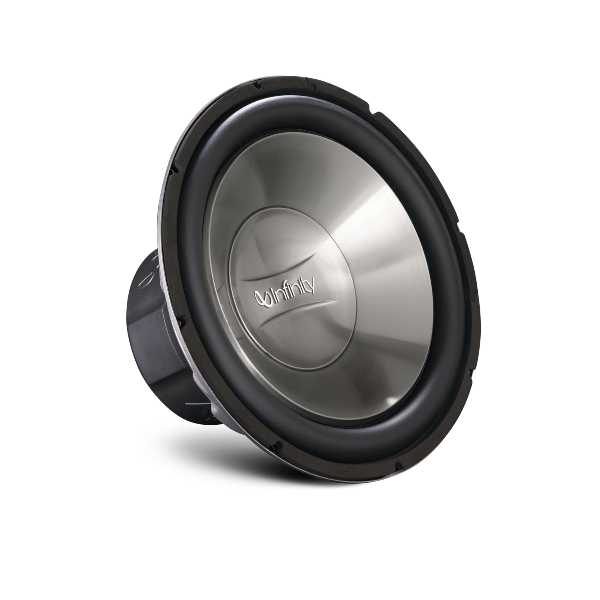

Infinity REFERENCE 1262W
Rating
DIAM
12"
FS(Hz)
25
VAS(l)
80.1
QTS
0.46
PWR(W)
1200
SPL(dB)
85.9
IMP(Ohm)
2x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
25
Vas(l)
80.1
Qts
0.46
Qms
6.84
Qes
0.49
Bl(Tm)
10.8
Mms(gr)
203
Cms(mm/N)
0.2
Rms(kg/s)
4.662
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
53100
Vd(l)
0.664
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
282
Mounting Depth (mm)
162
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
