Model

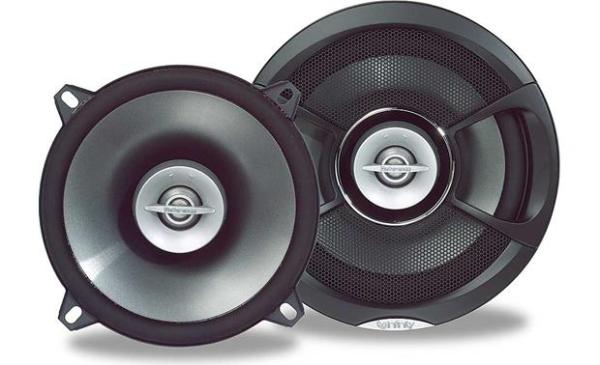

Infinity REFERENCE 5012I
Rating
DIAM
5"
FS(Hz)
84.2
VAS(l)
5.26
QTS
0.88
PWR(W)
135
SPL(dB)
86.8
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
84.2
Vas(l)
5.3
Qts
0.88
Qms
6.73
Qes
1.01
Bl(Tm)
4.3
Mms(gr)
10
Cms(mm/N)
0.347
Rms(kg/s)
0.809
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
103900
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
5
Max Power(W.)
135
RMS Power(W.)
45
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.3
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
90.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
