Model

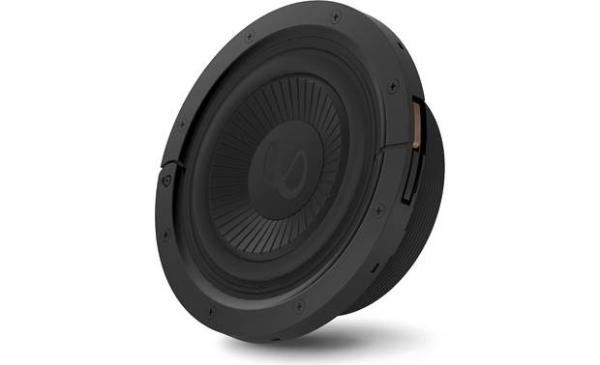

Infinity REFERENCE FLEX 8S
Rating
DIAM
8"
FS(Hz)
41.3
VAS(l)
13.694
QTS
1.1
PWR(W)
600
SPL(dB)
80.4
IMP(Ohm)
2x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
41.3
Vas(l)
13.7
Qts
1.101
Qms
6.1
Qes
1.345
Bl(Tm)
5.2
Mms(gr)
62
Cms(mm/N)
0.24
Rms(kg/s)
2.64
Le(mH)
0.58
Re(Ohm)
2.3
Sd(sq.mm)
20058
Vd(l)
0.094
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.07
Sensitivity(dB) 1-W
80.4
Sensitivity(dB) 2.8-V
85.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
260
Cutout Diameter (mm)
192
Mounting Depth (mm)
63
Magnet Diameter (mm)
192
Optimum Enclosures
Enclosures
BP4, Closed
