Model

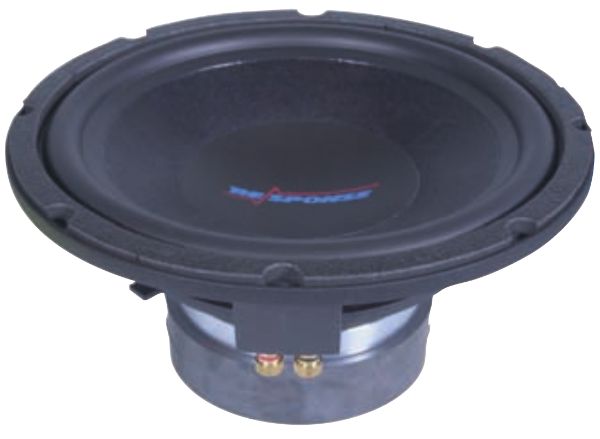

Jaycar CS-2228-12 DOUBLE MAGNET SUBWOOFER
Rating
DIAM
12"
FS(Hz)
24
VAS(l)
75
QTS
0.22
PWR(W)
500
SPL(dB)
88.3
IMP(Ohm)
8x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
24
Vas(l)
75
Qts
0.222
Qms
3.8
Qes
0.236
Bl(Tm)
0
Mms(gr)
197
Cms(mm/N)
0.223
Rms(kg/s)
7.93
Le(mH)
0
Re(Ohm)
7.2
Sd(sq.mm)
48700
Vd(l)
0.268
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
88.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
