Model

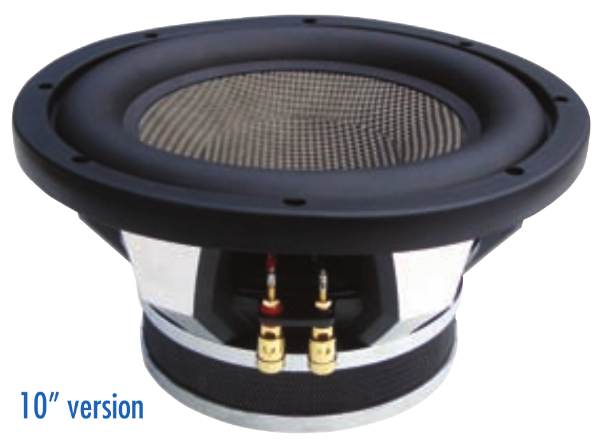

Jaycar CS-2278-10 PRECISION RESPONSE CARBON FIBRE SUBWOOFER
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
38.3
VAS(l)
26.95
QTS
0.4
PWR(W)
500
SPL(dB)
87.1
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
38.3
Vas(l)
26.9
Qts
0.404
Qms
3.8
Qes
0.452
Bl(Tm)
9.9
Mms(gr)
109
Cms(mm/N)
0.158
Rms(kg/s)
6.94
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
34636
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.32
Sensitivity(dB) 1-W
87.1
Sensitivity(dB) 2.8-V
93.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
272
Cutout Diameter (mm)
236
Mounting Depth (mm)
145
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
