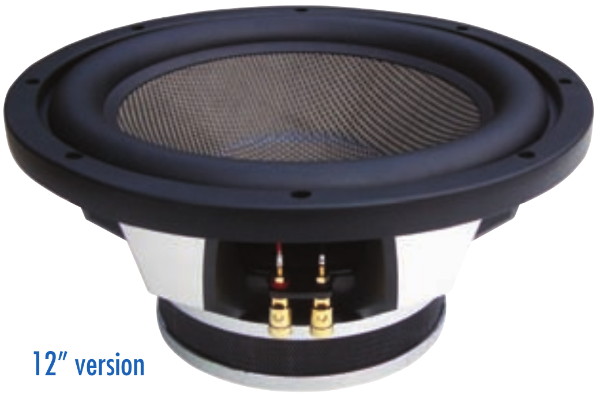

Jaycar CS-2279-12 PRECISION RESPONSE CARBON FIBRE SUBWOOFER
Jaycar CS-2279-12 PRECISION RESPONSE CARBON FIBRE SUBWOOFER
Model

Jaycar CS-2279-12 PRECISION RESPONSE CARBON FIBRE SUBWOOFER

Rating
DIAM
12"
FS(Hz)
28.8
VAS(l)
79.5
QTS
0.39
PWR(W)
600
SPL(dB)
88.1
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
28.8
Vas(l)
79.5
Qts
0.392
Qms
3.2
Qes
0.446
Bl(Tm)
10
Mms(gr)
145
Cms(mm/N)
0.211
Rms(kg/s)
8.09
Le(mH)
0
Re(Ohm)
1.7
Sd(sq.mm)
51472
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
600
RMS Power(W.)
300
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
88.1
Sensitivity(dB) 2.8-V
94.9

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
325
Cutout Diameter (mm)
280
Mounting Depth (mm)
147
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
