Model

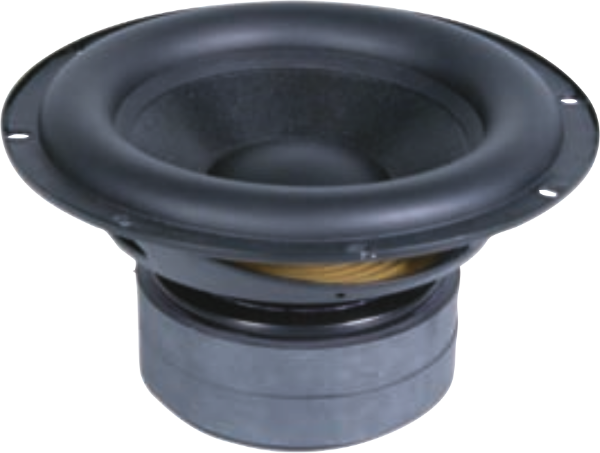

Jaycar CS-2340-8 4OHM SUBWOOFER
Rating
DIAM
8"
FS(Hz)
35.7
VAS(l)
42.87
QTS
0.38
PWR(W)
200
SPL(dB)
88.3
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
35.7
Vas(l)
42.9
Qts
0.384
Qms
2.4
Qes
0.457
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.41
Sensitivity(dB) 1-W
88.3
Sensitivity(dB) 2.8-V
91.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
212
Cutout Diameter (mm)
188
Mounting Depth (mm)
107
Magnet Diameter (mm)
120
Optimum Enclosures
Enclosures
BP4, BP6P, Closed, Vented
