Model

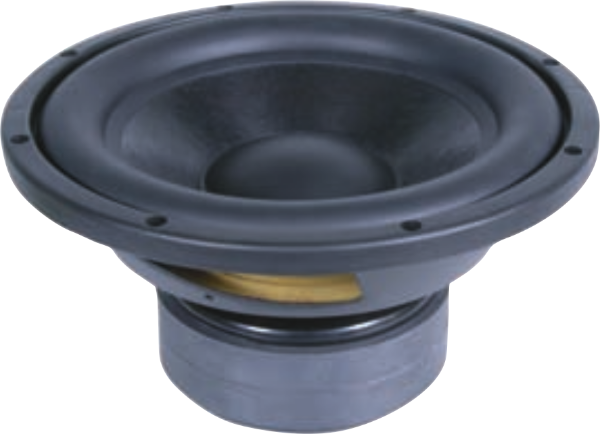

Jaycar CS-2342-10 4OHM SUBWOOFER
Rating
DIAM
10"
FS(Hz)
37.5
VAS(l)
106.6
QTS
0.49
PWR(W)
0
SPL(dB)
92
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
37.5
Vas(l)
106.6
Qts
0.488
Qms
3.5
Qes
0.566
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
0
RMS Power(W.)
0
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.96
Sensitivity(dB) 1-W
92
Sensitivity(dB) 2.8-V
95.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
261
Cutout Diameter (mm)
228
Mounting Depth (mm)
143
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
