Model

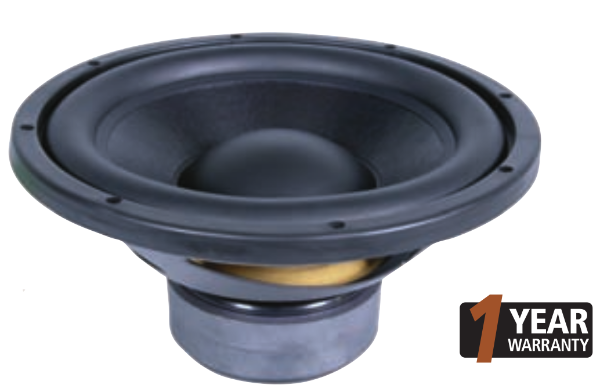

Jaycar CS-2344-12 4OHM SUBWOOFER
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
12"
FS(Hz)
31.3
VAS(l)
69.5
QTS
0.52
PWR(W)
360
SPL(dB)
87.7
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
31.3
Vas(l)
69.5
Qts
0.52
Qms
7.7
Qes
0.558
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
360
RMS Power(W.)
180
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.37
Sensitivity(dB) 1-W
87.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
314
Cutout Diameter (mm)
279
Mounting Depth (mm)
165
Magnet Diameter (mm)
140
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
