Model

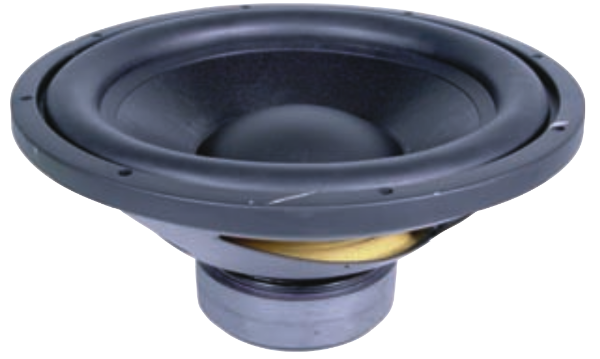

Jaycar CS-2345-15 4OHM SUBWOOFER
Rating
DIAM
15"
FS(Hz)
25.6
VAS(l)
150.7
QTS
0.5
PWR(W)
500
SPL(dB)
88.2
IMP(Ohm)
4x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
25.6
Vas(l)
150.7
Qts
0.497
Qms
3.6
Qes
0.578
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
15
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.42
Sensitivity(dB) 1-W
88.2
Sensitivity(dB) 2.8-V
91.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
393
Cutout Diameter (mm)
347
Mounting Depth (mm)
195
Magnet Diameter (mm)
156
Optimum Enclosures
Enclosures
Closed, BP4
