Model

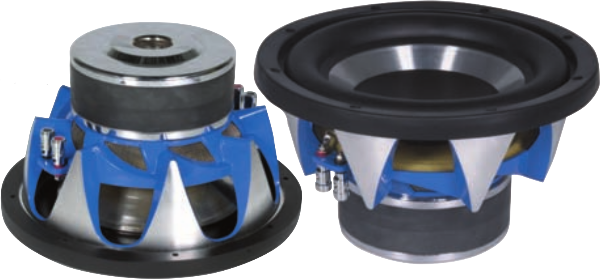

Jaycar CS-2366-10 METAL COATED CONE SUBWOOFER
Rating
DIAM
10"
FS(Hz)
23.7
VAS(l)
66.1
QTS
0.35
PWR(W)
500
SPL(dB)
85.5
IMP(Ohm)
2x2
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
23.7
Vas(l)
66.1
Qts
0.348
Qms
4
Qes
0.382
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
1.3
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
10
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
500
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0.22
Sensitivity(dB) 1-W
85.5
Sensitivity(dB) 2.8-V
93.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
274
Cutout Diameter (mm)
244
Mounting Depth (mm)
165
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
