Model

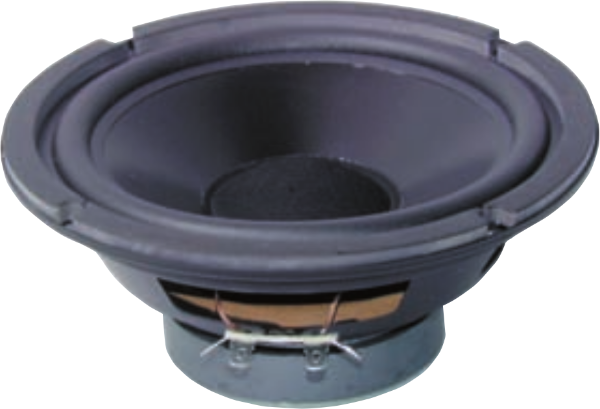

Jaycar CW-2108-6.5 (165MM) POLYCONE WOOFER
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
6"
FS(Hz)
49
VAS(l)
15.2
QTS
0.56
PWR(W)
80
SPL(dB)
86.4
IMP(Ohm)
8x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
49
Vas(l)
15.2
Qts
0.558
Qms
5.2
Qes
0.626
Bl(Tm)
7.6
Mms(gr)
16
Cms(mm/N)
0.664
Rms(kg/s)
0.95
Le(mH)
0
Re(Ohm)
7.3
Sd(sq.mm)
12700
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
80
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.28
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
144
Mounting Depth (mm)
70
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
