Model

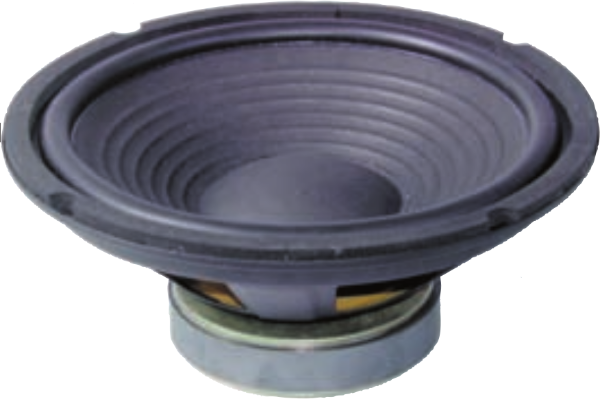

Jaycar CW-2119-10 (250MM) PAPER CONE WOOFER
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
10"
FS(Hz)
31
VAS(l)
115
QTS
0.78
PWR(W)
0
SPL(dB)
86.9
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
31
Vas(l)
115
Qts
0.775
Qms
2.9
Qes
1.057
Bl(Tm)
7.3
Mms(gr)
39
Cms(mm/N)
0.677
Rms(kg/s)
2.61
Le(mH)
0
Re(Ohm)
7.4
Sd(sq.mm)
34600
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
0
RMS Power(W.)
40
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.31
Sensitivity(dB) 1-W
86.9
Sensitivity(dB) 2.8-V
87.3
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
258
Cutout Diameter (mm)
231
Mounting Depth (mm)
100
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
