Model

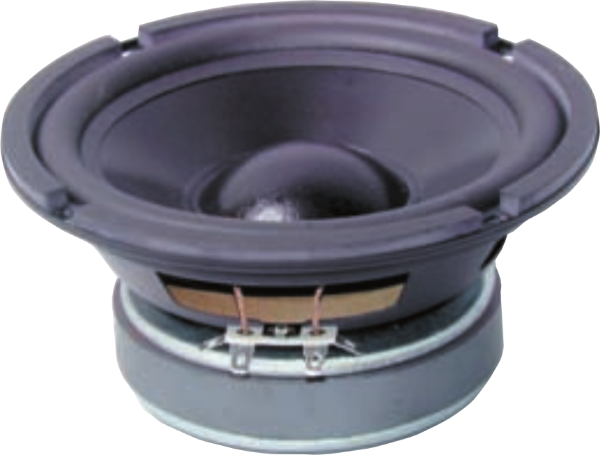

Jaycar CW-2135-6.5 (165MM) HIGH POWER POLYCONE WOOFER
Rating
Attention! Parameters of that speaker were not checked: a source of data, manual were not found.
DIAM
6"
FS(Hz)
39
VAS(l)
20.9
QTS
0.43
PWR(W)
0
SPL(dB)
86.1
IMP(Ohm)
8x1
avb
NOPROD
Thiele-Small Parameters
Fs(Hz)
39
Vas(l)
20.9
Qts
0.433
Qms
6
Qes
0.466
Bl(Tm)
8.5
Mms(gr)
20
Cms(mm/N)
0.833
Rms(kg/s)
0.81
Le(mH)
0
Re(Ohm)
6.9
Sd(sq.mm)
13300
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
0
RMS Power(W.)
80
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.26
Sensitivity(dB) 1-W
86.1
Sensitivity(dB) 2.8-V
86.7
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
165
Cutout Diameter (mm)
145
Mounting Depth (mm)
85
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
