Model

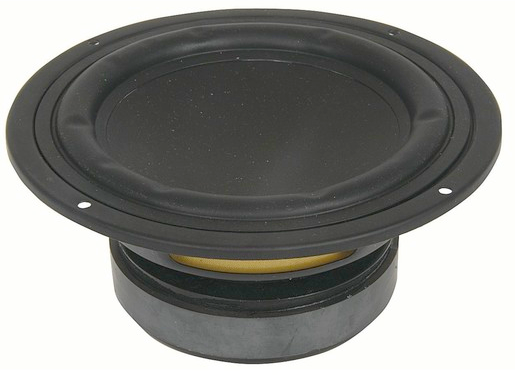

Jaycar CW-2194-6.5 WOOFER/MIDRANGE SPEAKER DRIVER
Rating
DIAM
6"
FS(Hz)
49.5
VAS(l)
19
QTS
0.44
PWR(W)
120
SPL(dB)
87.9
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
49.5
Vas(l)
19
Qts
0.44
Qms
2
Qes
0.57
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
120
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.39
Sensitivity(dB) 1-W
87.9
Sensitivity(dB) 2.8-V
89.2
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
178
Cutout Diameter (mm)
145
Mounting Depth (mm)
77
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
