Model

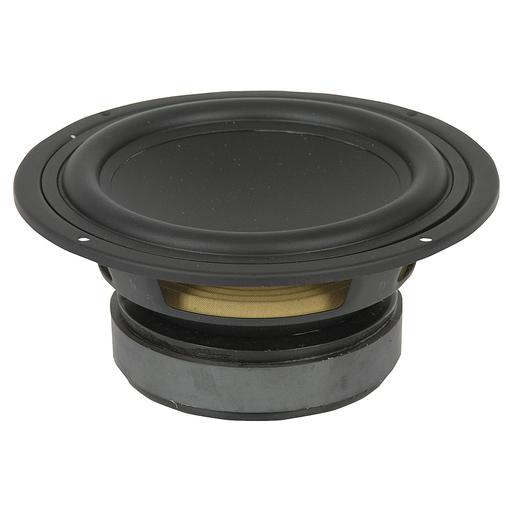

Jaycar CW-2196-8 WOOFER SPEAKER DRIVER
Rating
DIAM
8"
FS(Hz)
28.1
VAS(l)
42
QTS
0.33
PWR(W)
180
SPL(dB)
85.2
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
28.1
Vas(l)
42
Qts
0.33
Qms
1.5
Qes
0.43
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
6
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
180
RMS Power(W.)
90
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.21
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
86.4
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
220
Cutout Diameter (mm)
182
Mounting Depth (mm)
92
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6
