Model

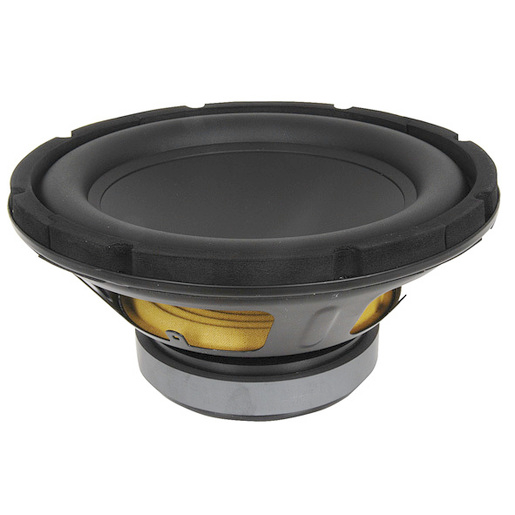

Jaycar CW-2198-10 WOOFER SPEAKER DRIVER
Rating
DIAM
10"
FS(Hz)
59.8
VAS(l)
21.76
QTS
0.32
PWR(W)
450
SPL(dB)
91.8
IMP(Ohm)
8x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
59.8
Vas(l)
21.8
Qts
0.32
Qms
1
Qes
0.47
Bl(Tm)
0
Mms(gr)
0
Cms(mm/N)
0
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
5.4
Sd(sq.mm)
0
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
450
RMS Power(W.)
225
Number of Coils
1
Impedance Z-Nom(Ohm)
8
Reference efficiency η0(%)
0.95
Sensitivity(dB) 1-W
91.8
Sensitivity(dB) 2.8-V
93.5
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
258
Cutout Diameter (mm)
235
Mounting Depth (mm)
110
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP6P, Vented
