Model

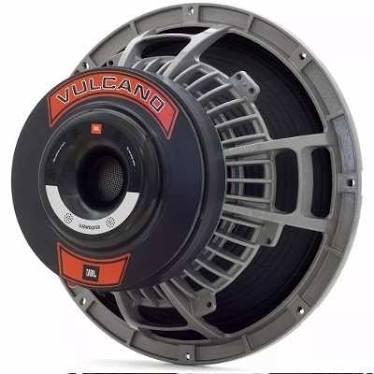

JBL 15SWV3.8
Rating
DIAM
15"
FS(Hz)
53.4
VAS(l)
43.9
QTS
0.52
PWR(W)
3800
SPL(dB)
92.8
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
53.4
Vas(l)
43.9
Qts
0.52
Qms
18.9
Qes
0.53
Bl(Tm)
20
Mms(gr)
202
Cms(mm/N)
0.044
Rms(kg/s)
3.58
Le(mH)
3.55
Re(Ohm)
3.1
Sd(sq.mm)
84000
Vd(l)
0.924
X-max(mm)
11
X-mech(mm)
21
General Parameters
Diameter (inch)
15
Max Power(W.)
3800
RMS Power(W.)
1900
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.22
Sensitivity(dB) 1-W
92.8
Sensitivity(dB) 2.8-V
97
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
388
Cutout Diameter (mm)
349
Mounting Depth (mm)
196
Magnet Diameter (mm)
220
Optimum Enclosures
Enclosures
Vented, BP6
