Model

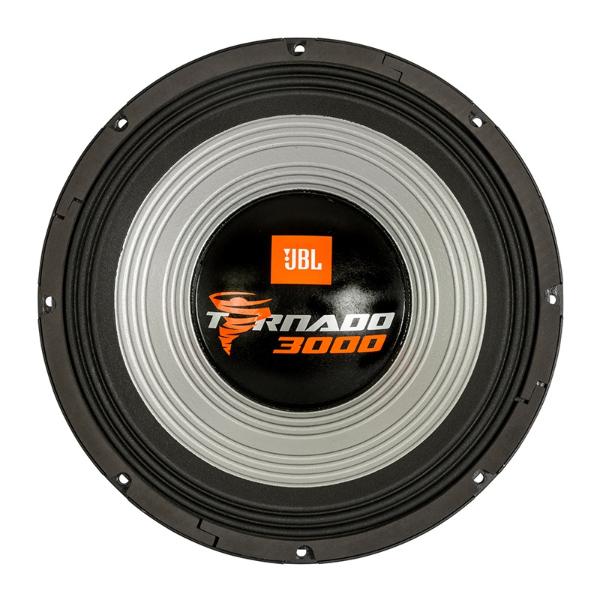

JBL 15WT3000
Rating
DIAM
15"
FS(Hz)
41
VAS(l)
76.3
QTS
0.44
PWR(W)
3000
SPL(dB)
92.5
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
41
Vas(l)
76.3
Qts
0.44
Qms
16.3
Qes
0.45
Bl(Tm)
15.9
Mms(gr)
186
Cms(mm/N)
0.081
Rms(kg/s)
2.94
Le(mH)
0
Re(Ohm)
3
Sd(sq.mm)
81400
Vd(l)
0.863
X-max(mm)
11
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
3000
RMS Power(W.)
1500
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
1.14
Sensitivity(dB) 1-W
92.5
Sensitivity(dB) 2.8-V
96.8
Mounting Information
Speaker Displacement (l)
6.1
Total Diameter (mm)
0
Cutout Diameter (mm)
387
Mounting Depth (mm)
192
Magnet Diameter (mm)
100
Optimum Enclosures
Enclosures
Vented, BP6
