Model

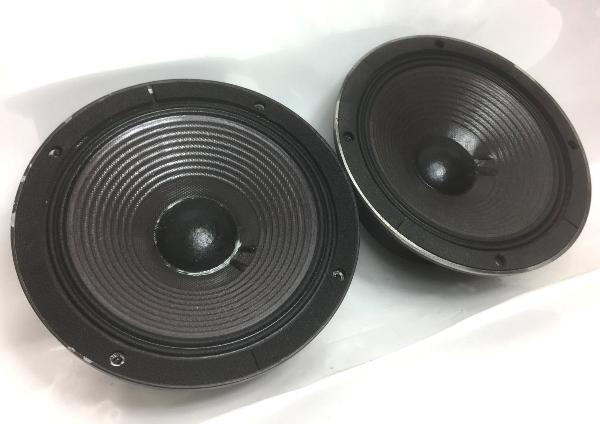

JBL 2118J
Rating
DIAM
8"
FS(Hz)
85
VAS(l)
14
QTS
0.35
PWR(W)
200
SPL(dB)
97
IMP(Ohm)
16x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
85
Vas(l)
14
Qts
0.35
Qms
2.4
Qes
0.41
Bl(Tm)
15
Mms(gr)
17
Cms(mm/N)
0.21
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
10.3
Sd(sq.mm)
21800
Vd(l)
0.065
X-max(mm)
3
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
200
RMS Power(W.)
100
Number of Coils
1
Impedance Z-Nom(Ohm)
16
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
97
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
1.5
Total Diameter (mm)
0
Cutout Diameter (mm)
179
Mounting Depth (mm)
98
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6
