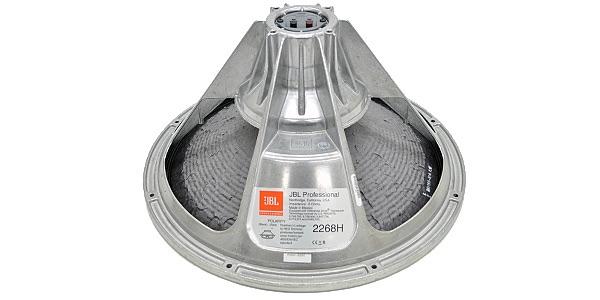

JBL 2268H
JBL 2268H
Model

JBL 2268H

Rating
DIAM
18"
FS(Hz)
33
VAS(l)
328
QTS
0.36
PWR(W)
1600
SPL(dB)
96.6
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.

Thiele-Small Parameters

Fs(Hz)
33
Vas(l)
328
Qts
0.36
Qms
3.8
Qes
0.39
Bl(Tm)
19.2
Mms(gr)
168
Cms(mm/N)
0.138
Rms(kg/s)
9.167
Le(mH)
1.85
Re(Ohm)
4.1
Sd(sq.mm)
127000
Vd(l)
3.175
X-max(mm)
25
X-mech(mm)
0

General Parameters

Diameter (inch)
18
Max Power(W.)
1600
RMS Power(W.)
800
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.8
Sensitivity(dB) 1-W
96.6
Sensitivity(dB) 2.8-V
99.5

Mounting Information

Speaker Displacement (l)
5
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6

Speaker response
