Model

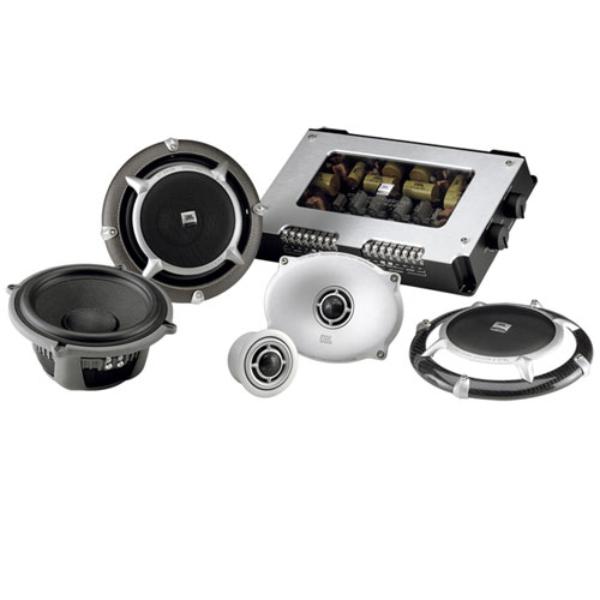

JBL 560GTI
Rating
DIAM
6"
FS(Hz)
74
VAS(l)
3.29
QTS
0.34
PWR(W)
500
SPL(dB)
87.5
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
74
Vas(l)
3.3
Qts
0.34
Qms
5.49
Qes
0.36
Bl(Tm)
7.6
Mms(gr)
15
Cms(mm/N)
0.312
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.1
Sd(sq.mm)
8660
Vd(l)
0.042
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
500
RMS Power(W.)
125
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
87.5
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
116
Mounting Depth (mm)
59
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
