Model

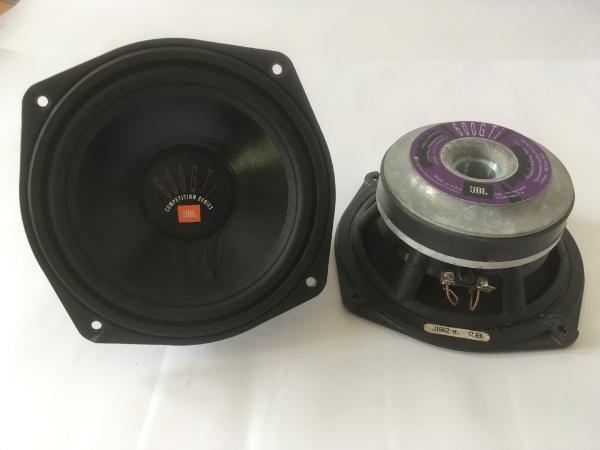

JBL 600GTI
Rating
DIAM
6"
FS(Hz)
56
VAS(l)
12.9
QTS
0.55
PWR(W)
300
SPL(dB)
86.4
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
56
Vas(l)
12.9
Qts
0.55
Qms
6.4
Qes
0.6
Bl(Tm)
6.4
Mms(gr)
17
Cms(mm/N)
0.47
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
14000
Vd(l)
0.1
X-max(mm)
6
X-mech(mm)
0
General Parameters
Diameter (inch)
6
Max Power(W.)
300
RMS Power(W.)
75
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.4
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
149
Mounting Depth (mm)
73
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
