Model

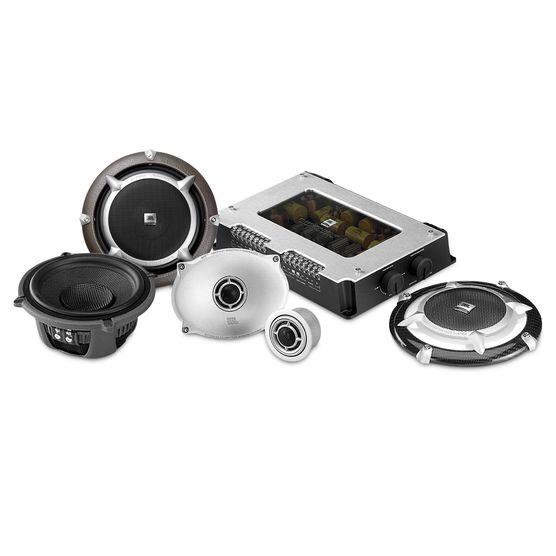

JBL 660GTI
Rating
DIAM
7"
FS(Hz)
60.8
VAS(l)
9.5
QTS
0.4
PWR(W)
600
SPL(dB)
89
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
60.8
Vas(l)
9.5
Qts
0.4
Qms
10.17
Qes
0.42
Bl(Tm)
7.6
Mms(gr)
18
Cms(mm/N)
0.382
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
13270
Vd(l)
0.07
X-max(mm)
5
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
600
RMS Power(W.)
150
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
128
Mounting Depth (mm)
69
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
