Model

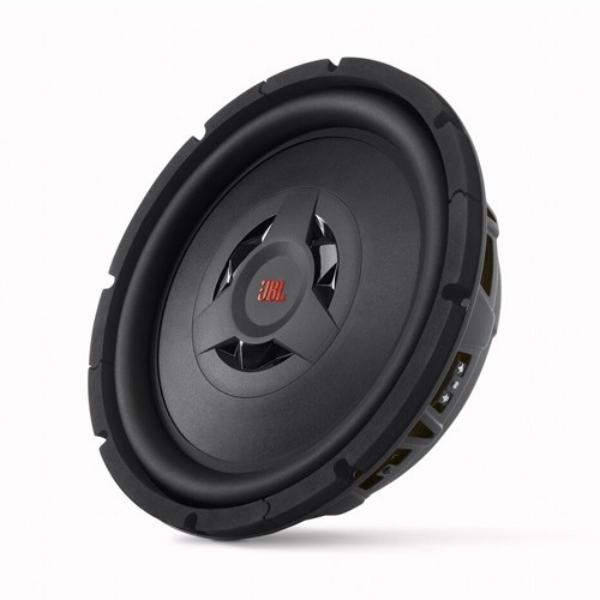

JBL CLUB WS1200-2
Rating
DIAM
12"
FS(Hz)
22.8
VAS(l)
97.4
QTS
0.53
PWR(W)
1000
SPL(dB)
86
IMP(Ohm)
2x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
22.8
Vas(l)
97.4
Qts
0.53
Qms
6.24
Qes
0.58
Bl(Tm)
9
Mms(gr)
177
Cms(mm/N)
0.275
Rms(kg/s)
4.064
Le(mH)
0
Re(Ohm)
1.8
Sd(sq.mm)
50273
Vd(l)
0.39
X-max(mm)
8
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
2
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
240
Mounting Depth (mm)
83
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
BP4, Closed
