Model

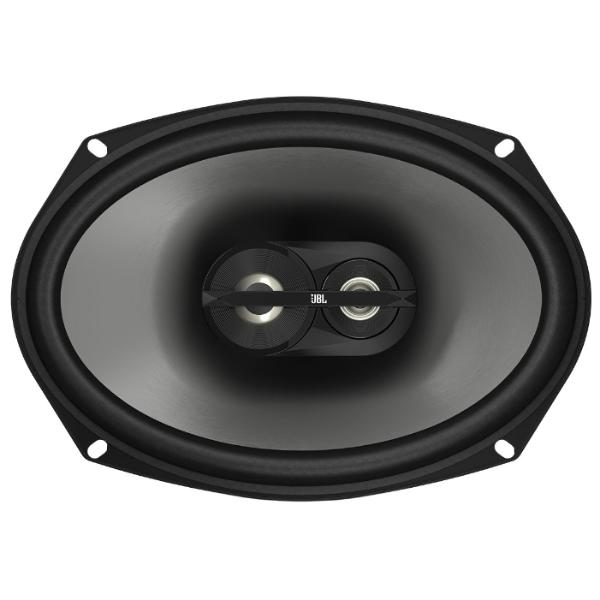

JBL CS769
Rating
DIAM
69"
FS(Hz)
56.4
VAS(l)
48
QTS
0.32
PWR(W)
210
SPL(dB)
96.1
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
56.4
Vas(l)
48
Qts
0.32
Qms
34.18
Qes
0.323
Bl(Tm)
0
Mms(gr)
42
Cms(mm/N)
0.34
Rms(kg/s)
0
Le(mH)
0
Re(Ohm)
0
Sd(sq.mm)
31550
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
69
Max Power(W.)
210
RMS Power(W.)
70
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
2.57
Sensitivity(dB) 1-W
96.1
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
0
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
