Model

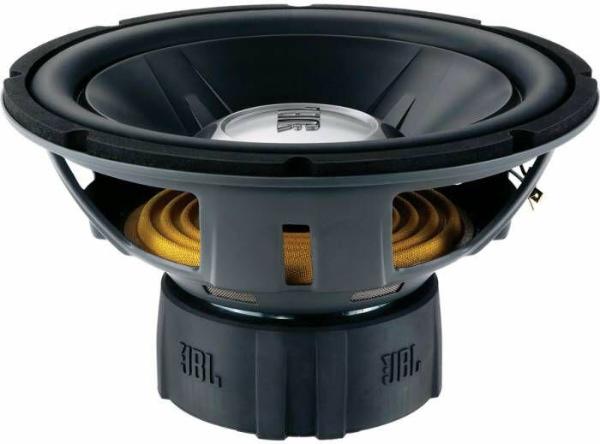

JBL GT5-10
Rating
DIAM
10"
FS(Hz)
30
VAS(l)
31.5
QTS
0.49
PWR(W)
1000
SPL(dB)
83.8
IMP(Ohm)
4x1
avb
PROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
30
Vas(l)
31.5
Qts
0.49
Qms
6.48
Qes
0.54
Bl(Tm)
14.8
Mms(gr)
167
Cms(mm/N)
0.169
Rms(kg/s)
4.843
Le(mH)
2.69
Re(Ohm)
4
Sd(sq.mm)
36300
Vd(l)
0.515
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0.15
Sensitivity(dB) 1-W
83.8
Sensitivity(dB) 2.8-V
86.8
Mounting Information
Speaker Displacement (l)
1
Total Diameter (mm)
264
Cutout Diameter (mm)
233
Mounting Depth (mm)
151
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
