Model

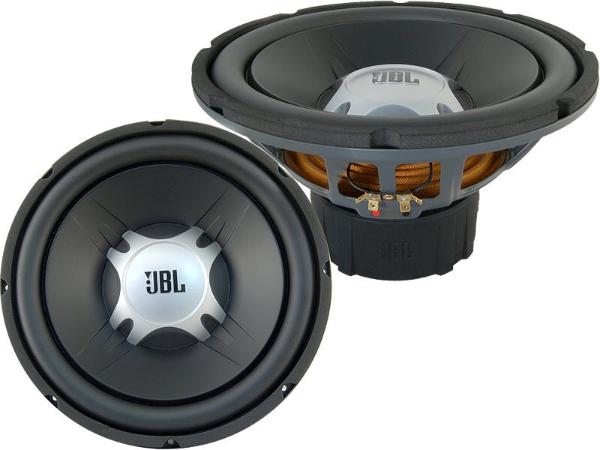

JBL GT5-12
Rating
DIAM
12"
FS(Hz)
29
VAS(l)
54
QTS
0.58
PWR(W)
1100
SPL(dB)
85.2
IMP(Ohm)
4x1
avb
UNK
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
29
Vas(l)
54
Qts
0.58
Qms
6.39
Qes
0.61
Bl(Tm)
15.2
Mms(gr)
223
Cms(mm/N)
135
Rms(kg/s)
6.359
Le(mH)
0
Re(Ohm)
4
Sd(sq.mm)
53000
Vd(l)
0.753
X-max(mm)
14
X-mech(mm)
0
General Parameters
Diameter (inch)
12
Max Power(W.)
1100
RMS Power(W.)
275
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
286
Mounting Depth (mm)
164
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
