Model

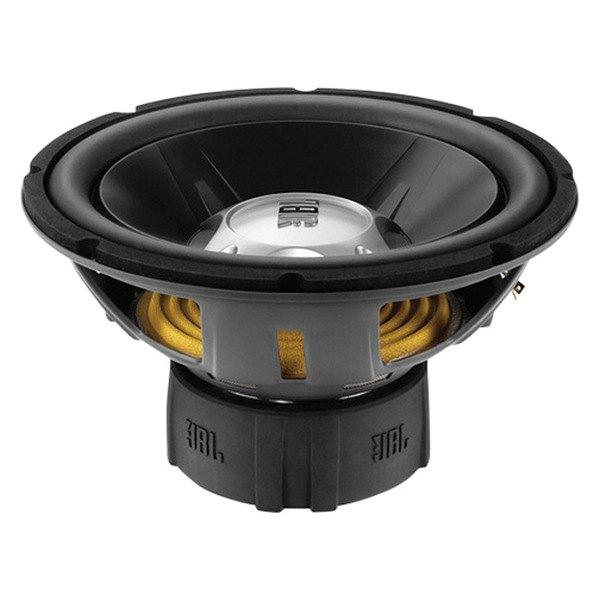

JBL GT5-15
Rating
DIAM
15"
FS(Hz)
27
VAS(l)
106
QTS
0.67
PWR(W)
1200
SPL(dB)
86.2
IMP(Ohm)
4x1
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27
Vas(l)
106
Qts
0.67
Qms
5.7
Qes
0.76
Bl(Tm)
16.5
Mms(gr)
332
Cms(mm/N)
102
Rms(kg/s)
9.881
Le(mH)
0
Re(Ohm)
3.7
Sd(sq.mm)
85462
Vd(l)
0.598
X-max(mm)
7
X-mech(mm)
0
General Parameters
Diameter (inch)
15
Max Power(W.)
1200
RMS Power(W.)
300
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.2
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
335
Mounting Depth (mm)
185
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, BP4
