Model

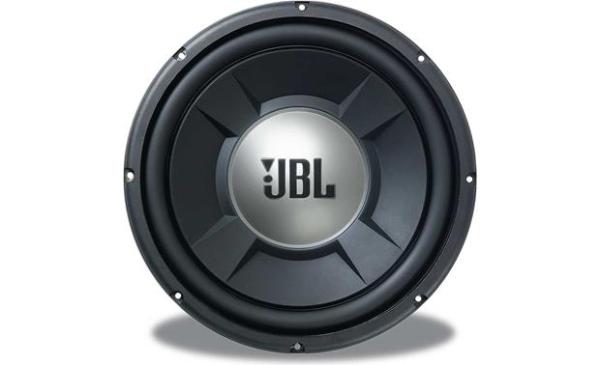

JBL GTO 1004D
Rating
DIAM
10"
FS(Hz)
27.7
VAS(l)
42.66
QTS
0.44
PWR(W)
1000
SPL(dB)
84.7
IMP(Ohm)
4x2
avb
NOPROD
Some parameters have a deviation from parameters associated with them. Please, look at the exclamation marks to get advice.
Thiele-Small Parameters
Fs(Hz)
27.7
Vas(l)
42.7
Qts
0.44
Qms
6.89
Qes
0.47
Bl(Tm)
9.9
Mms(gr)
139
Cms(mm/N)
0.237
Rms(kg/s)
3.521
Le(mH)
0
Re(Ohm)
1.9
Sd(sq.mm)
35500
Vd(l)
0.444
X-max(mm)
13
X-mech(mm)
0
General Parameters
Diameter (inch)
10
Max Power(W.)
1000
RMS Power(W.)
250
Number of Coils
2
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
84.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
2.8
Total Diameter (mm)
0
Cutout Diameter (mm)
232
Mounting Depth (mm)
116
Magnet Diameter (mm)
102
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
