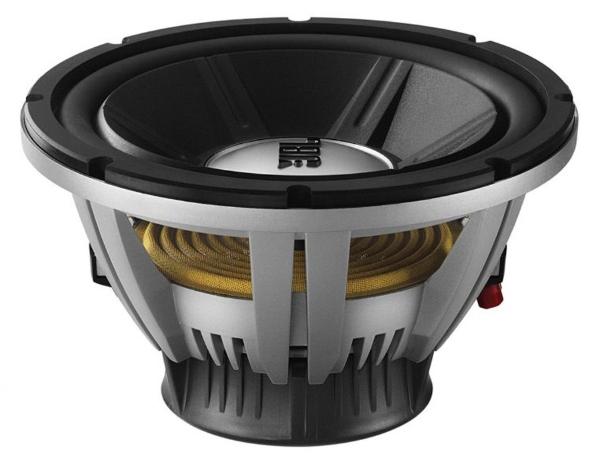

JBL GTO 1214
JBL GTO 1214
Model

JBL GTO 1214

Rating
DIAM
12"
FS(Hz)
28
VAS(l)
58.2
QTS
0.47
PWR(W)
1400
SPL(dB)
86
IMP(Ohm)
4x1
avb
UNK

Thiele-Small Parameters

Fs(Hz)
28
Vas(l)
58.2
Qts
0.47
Qms
10.7
Qes
0.492
Bl(Tm)
16.7
Mms(gr)
206
Cms(mm/N)
0.157
Rms(kg/s)
3.387
Le(mH)
0
Re(Ohm)
3.8
Sd(sq.mm)
51125
Vd(l)
0.741
X-max(mm)
15
X-mech(mm)
0

General Parameters

Diameter (inch)
12
Max Power(W.)
1400
RMS Power(W.)
350
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86
Sensitivity(dB) 2.8-V
0

Mounting Information

Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
278
Mounting Depth (mm)
160
Magnet Diameter (mm)
0

Optimum Enclosures

Enclosures
Closed, Vented, BP4, BP6P

Speaker response
