Model

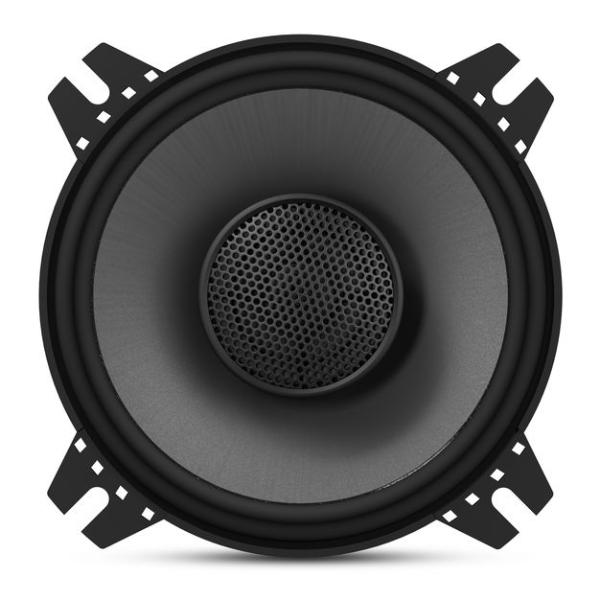

JBL GTO 429
Rating
DIAM
4"
FS(Hz)
138.5
VAS(l)
0.9
QTS
0.8
PWR(W)
105
SPL(dB)
85.7
IMP(Ohm)
3x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
138.5
Vas(l)
0.9
Qts
0.8
Qms
4.81
Qes
0.96
Bl(Tm)
3.3
Mms(gr)
5
Cms(mm/N)
0.244
Rms(kg/s)
0.977
Le(mH)
0
Re(Ohm)
2.2
Sd(sq.mm)
5030
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
4
Max Power(W.)
105
RMS Power(W.)
35
Number of Coils
1
Impedance Z-Nom(Ohm)
3
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
85.7
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
94
Mounting Depth (mm)
48
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
