Model

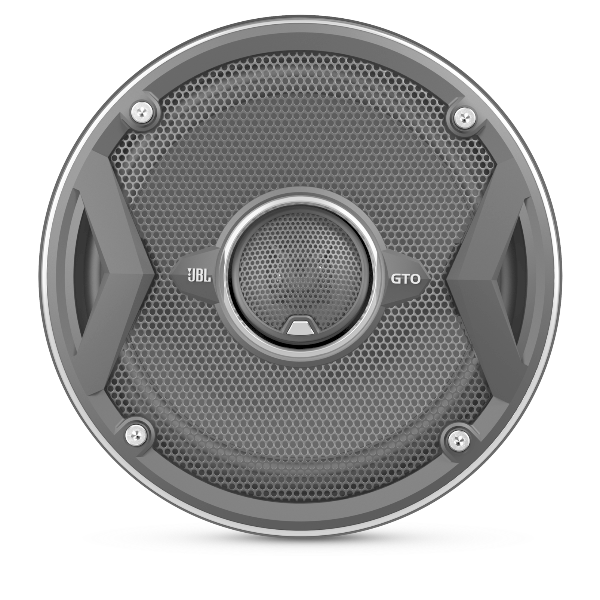

JBL GTO 629
Rating
DIAM
7"
FS(Hz)
77.3
VAS(l)
12.9
QTS
0.82
PWR(W)
180
SPL(dB)
89.9
IMP(Ohm)
3x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
77.3
Vas(l)
12.9
Qts
0.82
Qms
6.56
Qes
0.937
Bl(Tm)
3.4
Mms(gr)
9
Cms(mm/N)
0.475
Rms(kg/s)
0.661
Le(mH)
0
Re(Ohm)
2.4
Sd(sq.mm)
13893
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
7
Max Power(W.)
180
RMS Power(W.)
60
Number of Coils
1
Impedance Z-Nom(Ohm)
3
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
89.9
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
129
Mounting Depth (mm)
50
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
