Model

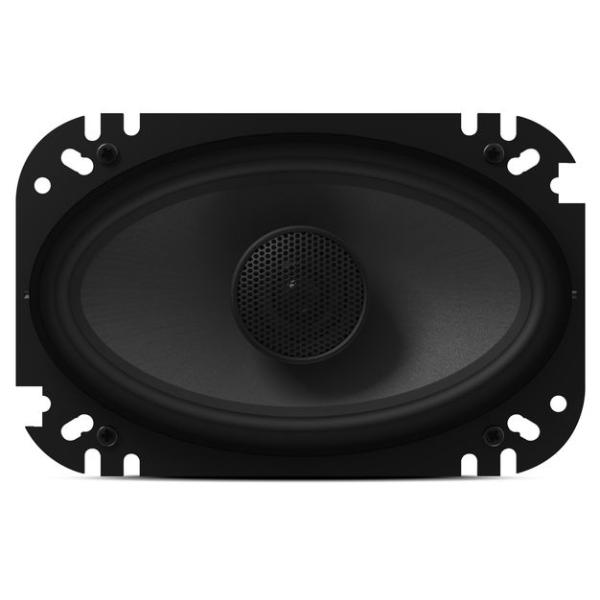

JBL GTO 6429
Rating
DIAM
46"
FS(Hz)
129.2
VAS(l)
1.7
QTS
0.99
PWR(W)
135
SPL(dB)
86.8
IMP(Ohm)
3x1
avb
PROD
Thiele-Small Parameters
Fs(Hz)
129.2
Vas(l)
1.7
Qts
0.99
Qms
6.44
Qes
1.17
Bl(Tm)
3.6
Mms(gr)
8
Cms(mm/N)
0.192
Rms(kg/s)
0.999
Le(mH)
0
Re(Ohm)
2.3
Sd(sq.mm)
7948
Vd(l)
0
X-max(mm)
0
X-mech(mm)
0
General Parameters
Diameter (inch)
46
Max Power(W.)
135
RMS Power(W.)
45
Number of Coils
1
Impedance Z-Nom(Ohm)
3
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
86.8
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
0
Mounting Depth (mm)
43
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Vented, BP6P
