Model

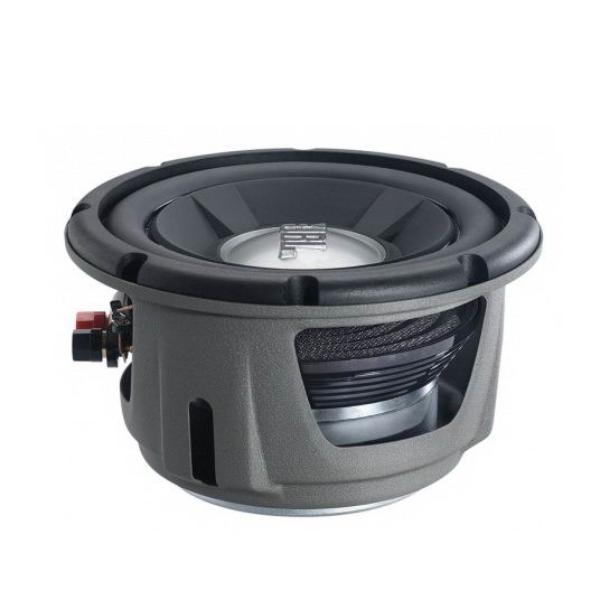

JBL GTO 804
Rating
DIAM
8"
FS(Hz)
29.6
VAS(l)
16.4
QTS
0.42
PWR(W)
800
SPL(dB)
81.6
IMP(Ohm)
4x1
avb
UNK
Thiele-Small Parameters
Fs(Hz)
29.6
Vas(l)
16.4
Qts
0.42
Qms
6.37
Qes
0.45
Bl(Tm)
12.9
Mms(gr)
115
Cms(mm/N)
0.251
Rms(kg/s)
3.358
Le(mH)
0
Re(Ohm)
3.5
Sd(sq.mm)
21477
Vd(l)
0.247
X-max(mm)
12
X-mech(mm)
0
General Parameters
Diameter (inch)
8
Max Power(W.)
800
RMS Power(W.)
200
Number of Coils
1
Impedance Z-Nom(Ohm)
4
Reference efficiency η0(%)
0
Sensitivity(dB) 1-W
81.6
Sensitivity(dB) 2.8-V
0
Mounting Information
Speaker Displacement (l)
0
Total Diameter (mm)
0
Cutout Diameter (mm)
179
Mounting Depth (mm)
110
Magnet Diameter (mm)
0
Optimum Enclosures
Enclosures
Closed, Vented, BP4, BP6P
